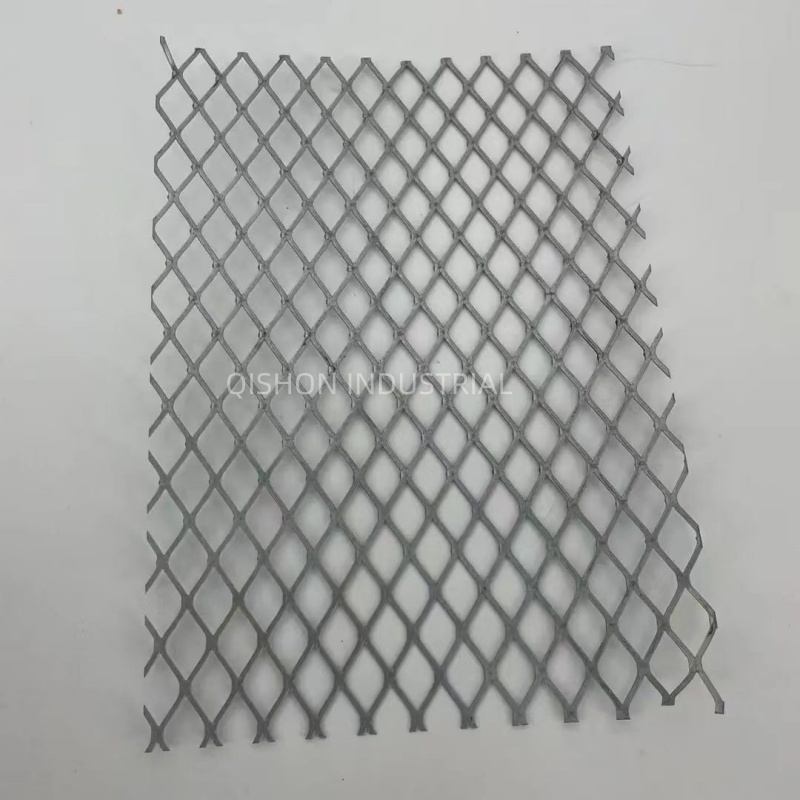

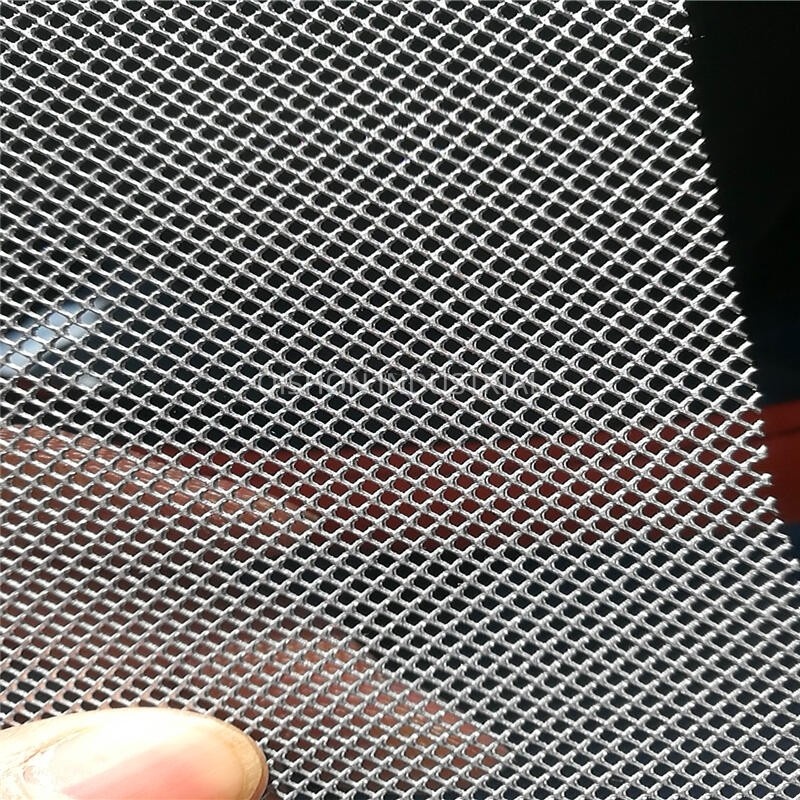

Products Description
Expanded metal mesh is a relatively popular and economical variety in the wire mesh industry. It is also called metal mesh, diamond mesh, iron mesh, expanded wire mesh, expanded steel metal, heavy expanded steel mesh, lightweight expanded wire mesh, pedal mesh, stretch mesh, aluminum mesh, stainless steel expanded mesh, granary mesh, antenna mesh, micro hole diamond mesh, fence mesh, filter mesh, speaker mesh, etc. It is processed by special machinery (expanded steel mesh punching and shearing machine). Expanded Mesh has various applications in different industrial fields.
| Item No. | Thickness(mm) | SWD(mm) | LWD(mm) | Strand(mm) | Width(m) | Length(m) |

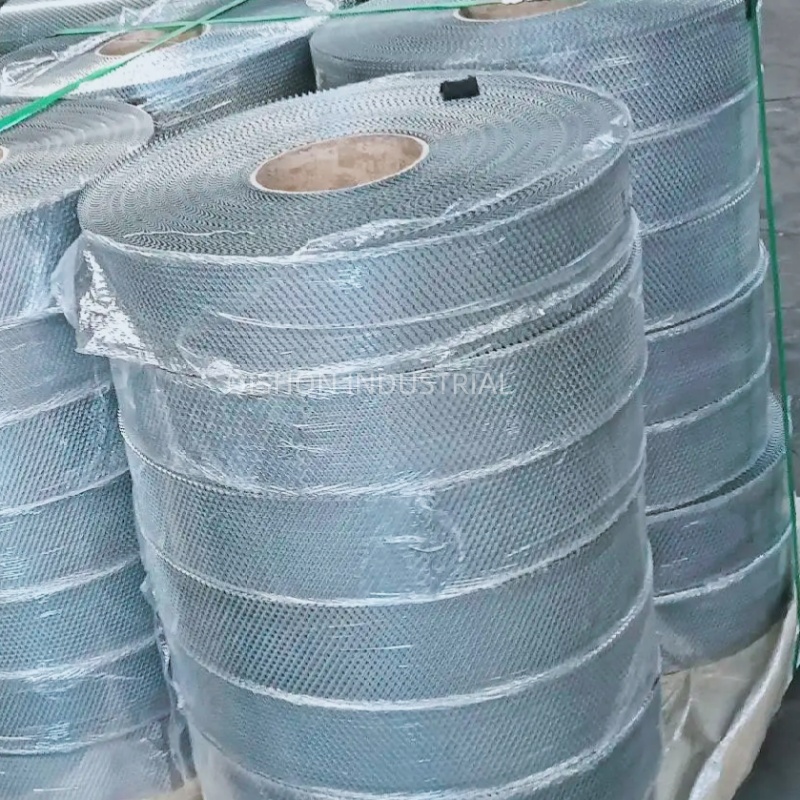

| 1 | 0.3 | 2 | 3 | 0.5 | 0.3-2m | Roll Length:20/30/50m Could cut into pieces too |
| 2 | 0.5 | 3 | 5 | 1 | ||
| 3 | 0.7 | 5 | 10 | 1 | ||
| 4 | 0.8 | 10 | 20 | 1.2 | ||
| 5 | 1 | 20 | 40 | 1.5 | ||
| 6 | 1 | 17 | 35 | 2 | ||
| 7 | 1 | 15 | 30 | 2 | ||
| Customized As Per Requirements | ||||||
Specifications
Hole Patterns
More Customized Patterns,Pls Click Here or Send Your Inquiries to sales@qishonindustrial.com
Feature
- High Strength-to-Weight Ratio: Despite being lightweight, expanded mesh is strong and durable, making it suitable for load-bearing applications.
- Economical: It is cost-effective because it is created from a single sheet of metal that is stretched, with no waste material produced.
- Good Ventilation and Visibility: The open spaces in the mesh allow for excellent airflow, light passage, and visibility, making it ideal for fencing, ventilation covers,filter screens and safety screens.
- Slip Resistance: The raised surface of expanded mesh provides excellent grip and slip resistance, which is useful in flooring or walking surfaces.
- No Welds or Joints: Since it is made from a single sheet, there are no weak points such as welds or seams, enhancing its structural integrity.
- Corrosion Resistance: Depending on the material (such as stainless steel or galvanized steel), expanded mesh can resist rust and corrosion, even in harsh environments.
- Flexible Design Options: Expanded mesh is available in various patterns, materials, and thicknesses, making it versatile for architectural, industrial, and decorative applications.
- Aesthetic Appeal: Its geometric design can also be visually appealing, often used in modern architecture for facades, fencing, or ceiling panels.
Application
Expanded Metal Mesh has a wide range of uses in various industries due to its strength, durability, and versatility. Expanded metal mesh’s versatility makes it an essential material in a wide range of applications across different sectors.
- Construction Industry:
Steel mesh is used as reinforcement in concrete structures to provide additional strength and stability. It is also used for fencing, barriers, and safety grilles. - Security Fencing:
Its strength makes it ideal for use in high-security fencing, protecting properties, and securing perimeters of sensitive areas like airports, military bases, and prisons. - Architecture and Facades:
Steel mesh is often used for decorative purposes in building facades, sunshades, and architectural cladding due to its aesthetic appeal and ability to filter light. - Filtration :
In industries，filter cartridges,filter panels,micro hole filter mesh, like chemical processing, water treatment, and food production,dust removing machines etc. steel mesh is used in filters and screens to separate materials or control airflow or support the media well. - Walkways and Platforms:
Due to its slip-resistant surface and load-bearing capacity, steel mesh is used for walkways, stair treads, and platforms in industrial and commercial settings. - Automotive and Transportation:
Steel mesh is used in vehicle grilles, air filters, and radiator covers to protect components while allowing ventilation. - Landscaping:
It can be used in garden fencing, trellises, and retaining walls for aesthetic and functional purposes. - Storage and Racking:
In warehouses, steel mesh is often used for shelving, partitions, and racking systems due to its ability to support heavy loads. - BBQ Mesh:It could be used in BBQ filed. The expanded mesh grille in stainless steel is a good choice to make the supporting during the grilling.
Tags: Expanded Filter Mesh Flattened Expanded Mesh Expanded Mesh for Filter Cartridges
