Products Description
Perforated Metal Mesh is a material made from sheets of metal that have been punched or perforated with holes in a regular pattern. This creates a lightweight, durable product that allows for airflow, visibility, and aesthetic appeal, making it suitable for various industrial,filtration and architectural applications.

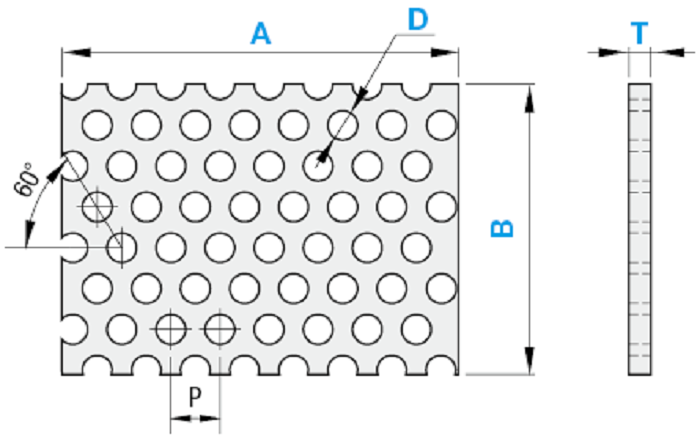

Specifications
| Item No. | Thickness(mm) | Hole Size(mm) | Pitch(mm) | Width(m) | Length(m) |
| 1 | 0.3 | 2 | 5 | 1 | 20 |
| 2 | 0.5 | 4 | 7 | 1.22 | 20 |
| 3 | 0.6 | 6 | 8 | 1 | 30 |
| 4 | 0.7 | 8 | 10 | 1.22 | 2.44 |
| 5 | 0.8 | 10 | 20 | 1 | 2 |
| 6 | 1 | 15 | 23 | 0.6 | 1.2 |
| 7 | 1.5 | 20 | 30 | 0.6 | 0.6 |
| 8 | 2 | 25 | 35 | 1.22 | 2.44 |
| 9 | 2.5 | 30 | 40 | 1.5 | 3 |
| 10 | 3 | 30 | 50 | 1 | 2 |
| 11 | 3 | 40 | 50 | 1 | 2 |
| Customized As Per Requirements | |||||

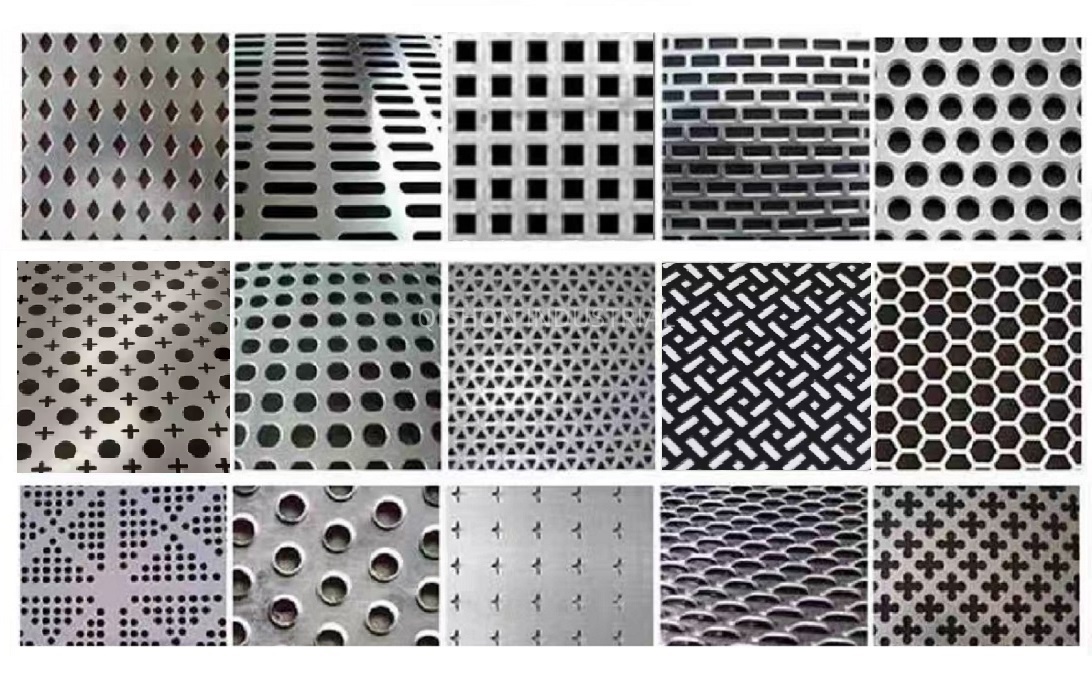

Hole Patterns
More Customized Patterns,Pls Click Here or Send Your Inquiries to sales@qishonindustrial.com
Feature
Perforated metal mesh, often referred to as perforated sheet or perforated metal, has several distinctive features:
- Versatility: It can be used in various applications, including architecture, filtration, and decorative purposes.
- Lightweight: Despite being made from metal, it is relatively lightweight compared to solid metal sheets.
- Strength and Durability: Perforated metal maintains high strength and durability, making it suitable for structural applications.
- Aesthetic Appeal: The patterns created by the perforations can enhance the visual appeal of structures or products.
- Air and Light Flow: The holes allow for the passage of air, light, and sound, making it ideal for ventilation and acoustics.
- Customization: It can be manufactured in various hole sizes, shapes, and arrangements, providing flexibility for design requirements.
- Easy to Clean: The smooth surface makes it easy to maintain and clean, especially in industrial applications.
- Corrosion Resistance: Depending on the material used (e.g., stainless steel), perforated metal can resist corrosion and wear.

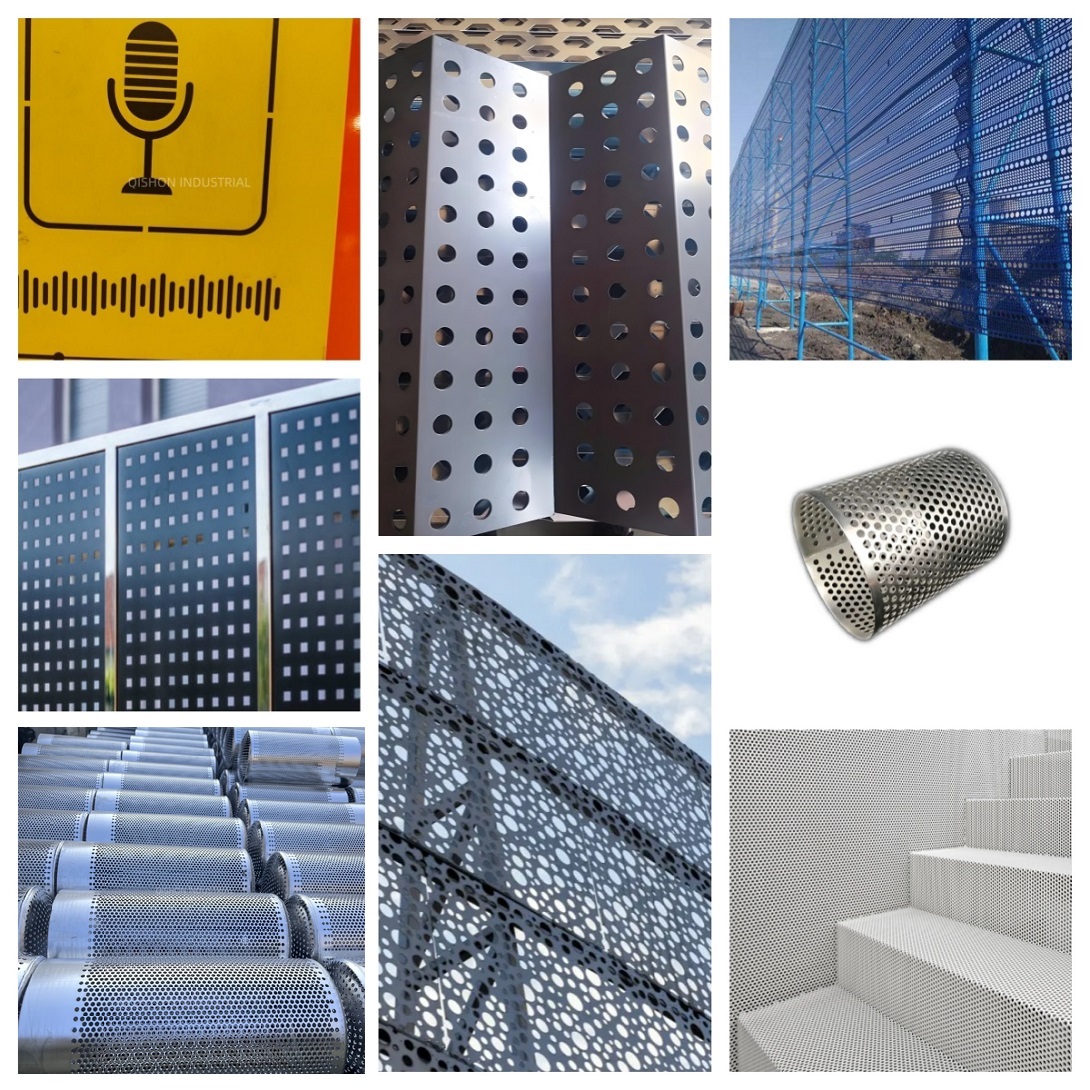

Application
Perforated metal mesh serves multiple purposes
- Architectural Design: Used in building facades, ceilings, and screens for aesthetic appeal and functionality.
- Filtration: Acts as filter elements screens& mesh filters in various industries, including water treatment and air filtration systems.
- Sound Absorption: Helps reduce noise levels in environments like studios or industrial settings.
- Safety and Security: Used in fences, barriers, and security screens.
- Industrial Applications: Employed in sieving, sorting, and material handling.
- Automotive: Found in grills and vents for air circulation.
- Furniture Design: Used in modern furniture for both structure and style.
- Lighting: Can diffuse light in lamps and light fixtures.
- Speaker Grilles: Could used as the speaker grilles to protect the speaker well.
