Products Description

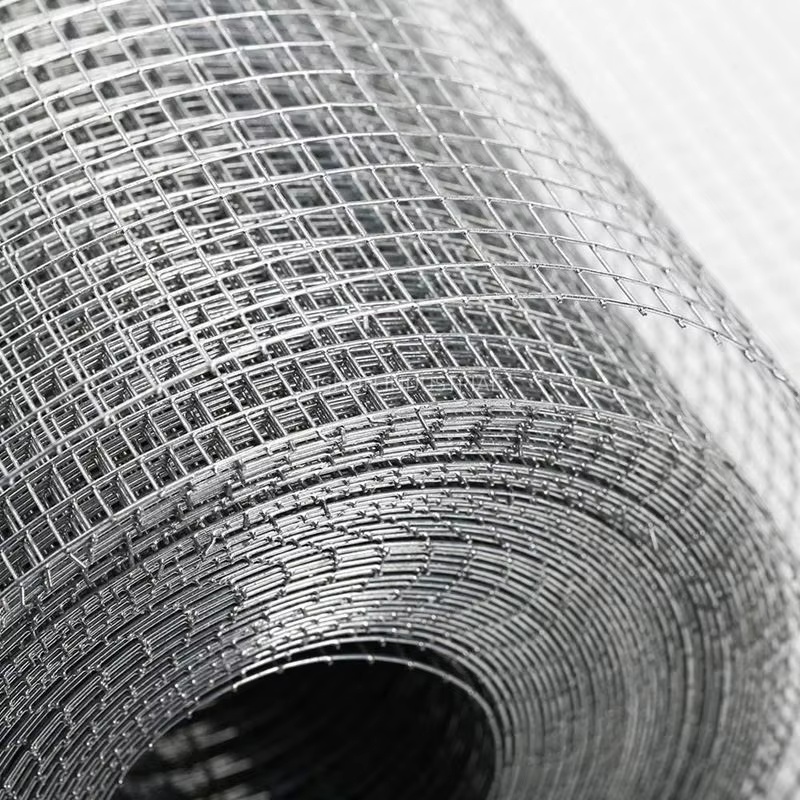

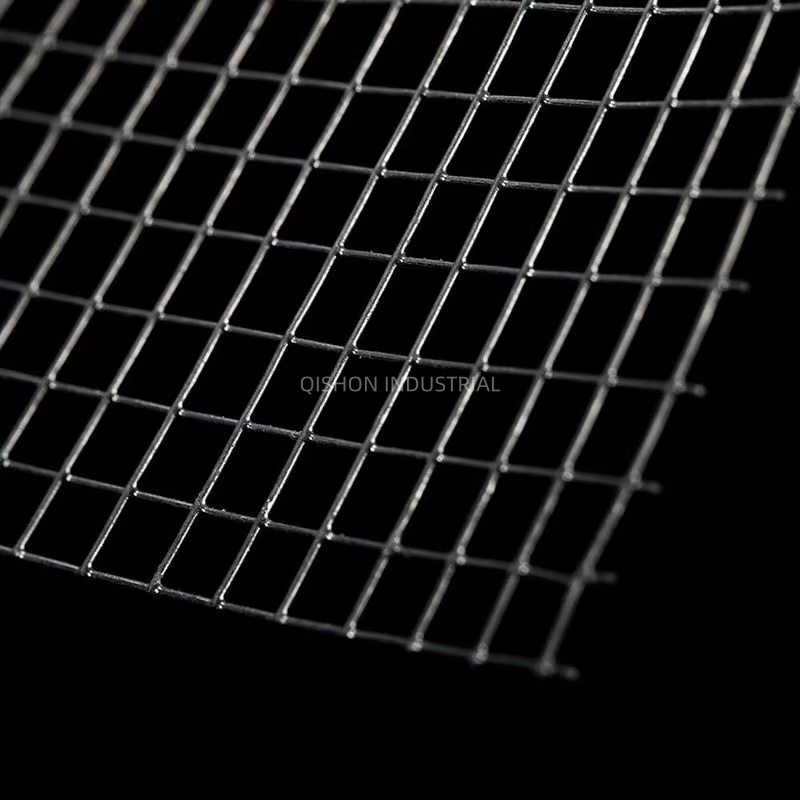

Welded wire mesh is a type of wire fabric made by welding together intersecting steel wires at their junctions. It is commonly used in various applications such as construction, fencing, and agriculture.
Specifications
| Item No. | Opening | In Metric Unit | Wire Diam | Width(m) | Length(m) |
| 1 | 1/4″ x 1/4″ | 6.4mm x 6.4mm | BWG 22,23,24 | 0.3/0.5/0.9/1/1.2/1.5/2 or as per required sizes | Roll Length:15/24/30/36/48/50/100 Could cut into sheets sizes too |
| 2 | 3/8″ x 3/8″ | 10.6mm x 10.6mm | BWG 19,20,21,22 | ||
| 3 | 1/2″ x 1/2″ | 12.7mm x 12.7mm | BWG 16,17,18,19,20,21,22,23 | ||
| 4 | 5/8″ x 5/8″ | 16mm x 16mm | BWG 18,19,20,21, | ||
| 5 | 3/4″ x 3/4″ | 19.1mm x 19.1mm | BWG16,17,18,19,20,21 | ||
| 6 | 1″ x 1/2″ | 25.4mm x 12.7mm | BWG16,17,18,19,20,21 | ||
| 7 | 1″ x 2″ | 25.4mm x 50.8mm | BWG 14,15,16 | ||
| 8 | 2″ x 2″ | 50.8X50.8mm | BWG 12,13,14,15,16 | ||
| 9 | 2″ x 4″ | 50.8X101.6mm | BWG 12,13,14,15 | ||
| 10 | 4″ x 4″ | 101.6X101.6mm | BWG 12,13,14,15 | ||
| 11 | 4″ x 6″ | 101.6X152.4mm | BWG 12,13,14,15 | ||
| 12 | 6″ x 6″ | 152.4X152.4mm | BWG 12,13,14,15 | ||
| 13 | 6″ x 8″ | 152.4X203.2mm | BWG 12,13,14,15 | ||
| Customized As Per Requirements | |||||
More Customized Patterns,Pls Click Here or Send Your Inquiries to sales@qishonindustrial.com
Surface Treatment
Feature
- High Strength: The welding process creates strong, durable connections between wires, providing enhanced structural integrity.
- Stability: Welded wire mesh maintains its shape under stress, making it resistant to deformation and damage.
- Easy Installation: It can be cut to size and installed easily, which saves time and labor during projects.
- Corrosion Resistance: Often galvanized or coated, welded wire mesh offers excellent resistance to rust and corrosion, making it suitable for outdoor use
Application
- Construction: Used as reinforcement in concrete structures.
- Fencing: Ideal for agricultural and residential fencing to contain livestock and secure properties.
- Industrial Uses: Utilized in the manufacturing of shelves, racks, and partitions.
- Landscaping: Employed for erosion control and decorative elements,such as fence, display stand etc.
