Products Description

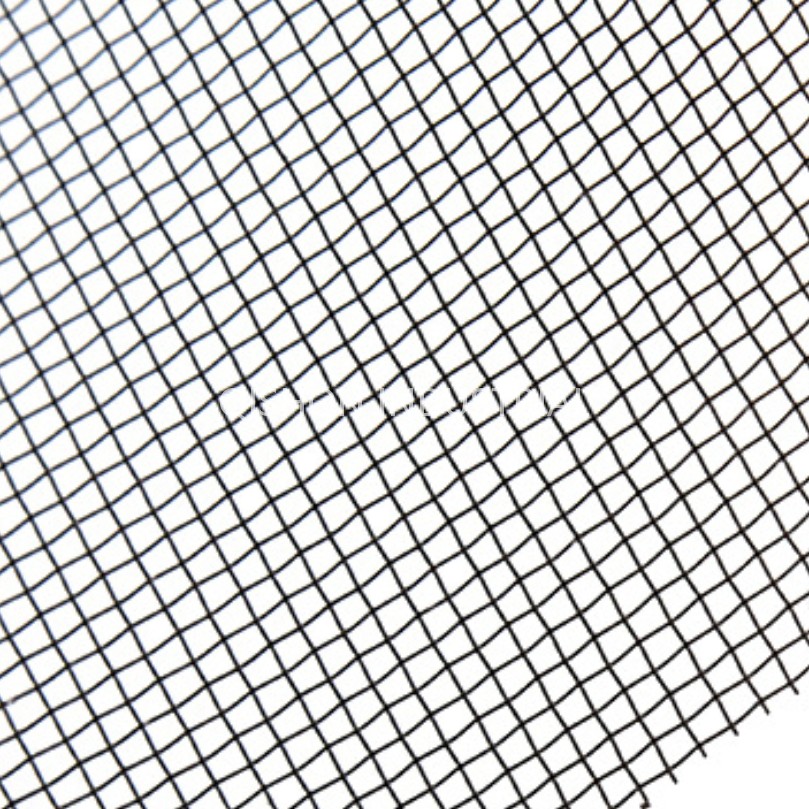

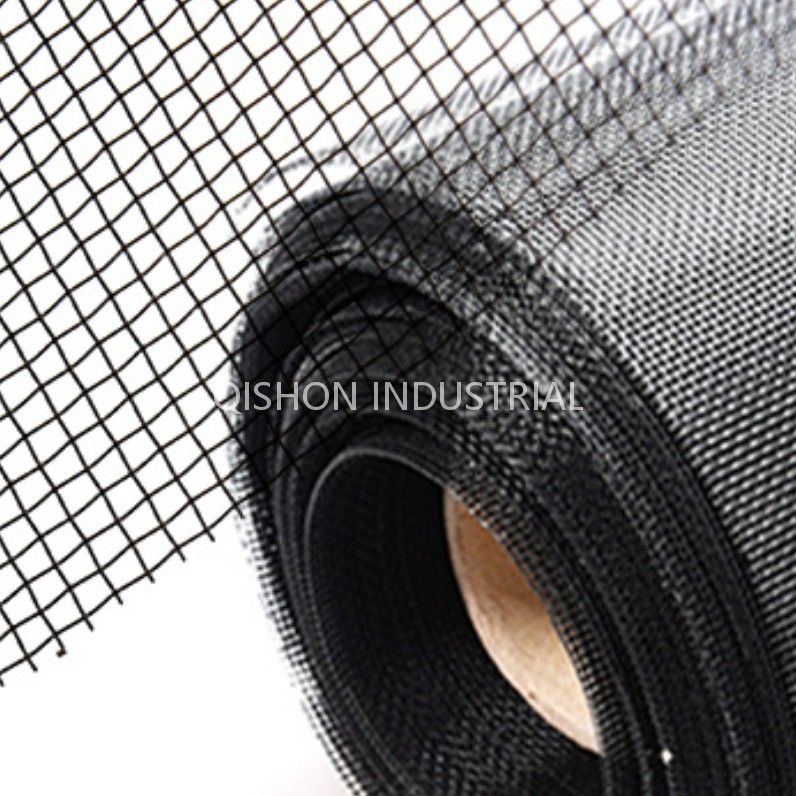

Woven wire window screen is a type of mesh material made from interwoven metal wires, designed to cover windows. It serves to keep insects out while allowing airflow and visibility. The wires can vary in thickness and spacing, providing different levels of durability and screening effectiveness.There are different materials in iron wire, stainless steel wire, aluminum wire to meet clients’different needs.
Specifications
| Item No. | Wire Thickness(mm) | Mesh/Inch | Width(m) | Length(m) |
| 1 | 1.8 | 2 | 0.9/1/1.2/1.5/2 | 30/50/100/150/300 |
| 2 | 1.6 | 3 | ||
| 3 | 1.2 | 4 | ||
| 4 | 0.91 | 5 | ||
| 5 | 0.8 | 6 | ||
| 6 | 0.6 | 8 | ||
| 7 | 0.55 | 10 | ||
| 8 | 0.5 | 12 | ||
| 9 | 0.45 | 14 | ||
| 10 | 0.4 | 16 | ||
| 11 | 0.35 | 18 | ||
| 12 | 0.3 | 20 | ||
| 13 | 0.15 | 60 | ||
| 14 | 0.14 | 70 | ||
| 15 | 0.12 | 80 | ||
| 16 | 0.11 | 90 | ||
| 17 | 0.10 | 100 | ||
| 18 | 0.08 | 120 | ||
| 19 | 0.07 | 140 | ||
| 20 | 0.04 | 250 | ||
| Customized As Per Requirements | ||||
Weaving Types
More Customized Patterns,Pls Click Here or Send Your Inquiries to sales@qishonindustrial.com
Feature
Woven wire window screens typically feature durability, allowing for resistance to wear and tear. They provide excellent visibility and airflow while effectively keeping out insects. Additionally, they can be customized in terms of wire gauge and mesh size to suit different needs.
- Precise Openings: The mesh has uniform openings that allow for accurate filtration or screening.
- Versatility: It is used in various industries, such as filtration, sieving, security, and architecture.
- Strength and Durability: Woven wire mesh maintains high tensile strength and resists wear and tear.
- Flexible Weaving Options: The weave type (e.g., plain weave, twill weave) can be customized for specific applications.
Application
Woven wire window screens are commonly used in residential and commercial buildings to prevent insects from entering while allowing fresh air and light. They are also utilized in patios, porches, and agricultural settings to protect crops from pests. Additionally, they can be found in industrial applications for ventilation and safety.
Woven wire mesh could also be used in other applications,such as speaker grills, filtration,baskets,decorative partitions and so on.
Tags: Aluminum Woven Wire Window Screen Iron Steel Woven Wire Window Screen Stainless Steel Woven Wire Window Screen Woven Wire Window Screen
